HEATING CABLES

TRM has a wide range of standard and custom heating cables available in both constant wattage and self-regulating varieties. This means we can provide the best solutions for almost any electric heat tracing request.

  • HDPE Jacketed Copper MI Cables
  • Self-Regulating (SR) Heating Cables
  • Interior Floor Warming Systems
  • Alloy 825 and Stainless-Steel MI Cables
  • Polymeric Residential Snow Melt Heating Cables
  • Polymeric Freeze Protection Heating Cables

HDPE Jacketed Copper MI Cables

TRM HDPE (high-density polyethylene) Jacketed Copper Mineral Insulated Heating Cables are engineered and manufactured to provide solutions for many residential, commercial and industrial applications, including:

  • Snow melting on ramps, parking lots, entrances, stairs, walkways, etc.
  • Roof and gutter de-icing
  • Frost heave prevention
  • Heat loss replacement
  • Interior floor warming (where higher watt densities are required)

TRM MI heating cables are constructed from high-grade materials to create a resulting product that is both robust and rugged, while remaining flexible and easy to install. Each MI heating cable is made from a seamless copper sheath, with either a single or dual copper/alloy heating conductor, encased in a highly compressed magnesium oxide powder and covered by a high-density polyethylene outer jacket. The cable is engineered in a series-resistant configuration, which provides a constant wattage output.

Every TRM MI heating cable is designed and manufactured by hand to suit your specific application at our CSA-approved facility in Markham, Ontario. Standard heating element designs are carried in stock and ready to go, so we can offer quick turnaround if your project has time constraints. TRM MI heating cables are built to last, but they are easy to test, fault-locate, and repair (should the need arise) to avoid any costly downtime in the future.

Downloads

HDPE Jacketed Copper MI Cables

Data Sheet

Installation Guide

General Heat Tracing Accessories

Installation Guide

HDPE MI Heating Cable

Testing Manual

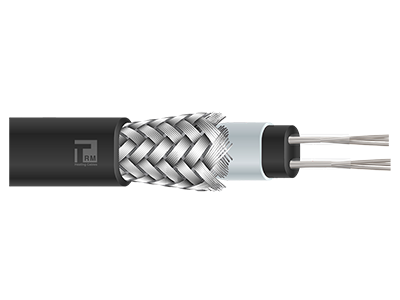

Self-Regulating (SR) Heating Cables

TRM Self-Regulating (SR) Heating Cables are safe, flexible and easy to install in a wide range of residential, commercial, and industrial applications where the heating cables need to be exposed to free air, rather than being embedded in a medium.

Self-regulating technology allows each of these heating cables to adjust its wattage (heat) output based on the temperature and environment to which the cable is exposed. In cold conditions, it generates more wattage (heat). In warmer conditions, the output is reduced and, thereby, saves energy.

This technology also helps make it one of the safest heating cables on the market, as well as the industry standard for most roof and pipe tracing applications. If it encounters a warm surface or is exposed to a warm ambient environment, the cable will automatically adjust its wattage output and avoid overheating in any one location. They can also be cut, field-terminated, and crossed over themselves.

These cables are ideal for:
  • Freeze protection pipe tracing
  • Process maintenance pipe and vessel tracing
  • Heat loss replacement
  • Roof and gutter de-icing
  • Frost heave prevention
  • In-pipe heat tracing of potable water lines
  • Hot water temperature maintenance

Our Self-Regulating Heating Cables are available in bulk coils with termination accessories. However, you can also choose from our standard catalogue of pre-assembled SR cable kits that include a factory-made end seal and pre-made termination point. These have a 6′ cold lead, which can be hard-wired at 208/240V or directly plugged into a 120V outlet.

Downloads

Self-Regulating (SR) Heating Cable

Data Sheet

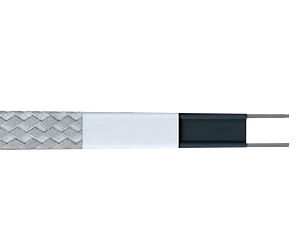

TRM SR In-Pipe Heating Cable

Installation Guide

Roof Gutter Deicing System

Site Worksheet

Roof and Gutter De-Icing Accessories: Clips and Hangers

Data Sheet

Pipe Tracing Accessories: Tape and Caution Labels

Data Sheet

Self Regulating Cable Power Connection Kit

Installation Guide

Self Regulating Cable Splice and Tee Kit

Installation Guide

Pre-Assembled Self Regulating Heating Cable Kits

Site Worksheet

Roof and Gutter De-Icing Accessories: Clips and Hangers

Data Sheet

Roof and Gutter Clip

Installation Guide

Roof and Gutter Downspout Hanger

Installation Guide

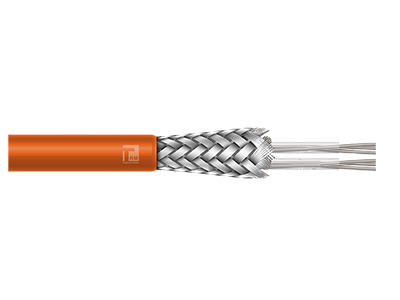

Interior Floor Warming Systems

TRM Interior Floor Warming Systems are innovative, maintenance-free, and energy-efficient, especially when coupled with a programmable TRM brand interior floor-warming thermostat. The constant wattage systems provide a consistent heating output across the entire floor area, preventing cold spots and irregularities, while offering a truly luxurious experience.

Whether for your latest home renovation project or new construction, TRM Electric Interior Floor Warming systems are suitable for a wide range of interior heating applications, such as:
  • Heat Loss Prevention
  • Comfort Floor Warming
  • Supplementary Heating
  • Primary Heating (depending on site conditions)
We offer two different interior floor-heating product types to ensure the correct product is implemented in every situation:
  • Pre-constructed roll-out mats (in various standard and custom sizes)
  • Loose heating cable with an uncoupling (underlayment) membrane (in various standard sizes, and two membrane roll sizes in 54 sq. ft. or 161 sq. ft.)
While TRM’s uncoupling membrane is generally supplied as a system with our loose heating cables, it can also be installed over our heating mats or used as a stand-alone underlayment to provide:
  • Waterproofing – Naturally waterproof (as it is made from polypropylene) and provides added protection for indoor installations in areas that are prone to water damage
  • Uncoupling/Crack Isolation – Compensates for the longitudinal movement between the subfloor and the tile preventing breakage
  • Vapor Management – Allows air pockets to form between the subfloor and membrane; excess moisture from the substrate creates a vapour cycle that balances the vapour content of the substrate
  • Load Distribution – Patented design allows the floor load to be evenly distributed from the tile covering to the subfloor to prevent breakage

Either system can provide the same heating output of 12-15w/sq. ft. However, depending on the room dimensions, intent of the heating system, installation timeframes, and your budget, we may recommend one product that is more suitable than another. Our product experts can help you find the perfect interior floor warming system, no matter how big or small.

Downloads

Interior Floor Warming Cable and Membrane Systems

Data Sheet

Installation Guide

Interior Floor Warming Mat Systems

Data Sheet

Installation Guide

Trifold

TRM-FH-Gold

Data Sheet

Operating Manual

Quick Start Guide

TRM-FH-Silver

Data Sheet

Operating Manual

Quick Start Guide

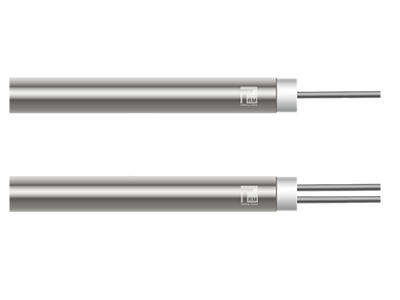

Alloy 825 and Stainless-Steel MI Cables

TRM Alloy 825 and Stainless Steel Mineral Insulated Heating Cables are constructed from high-grade materials to create a resulting product that can tolerate the extreme operating conditions found in commercial and industrial applications.

TRM Alloy 825 and Stainless Steel MI Heating Cables are constructed of a seamless 825/SS sheath, with either a single or dual copper/alloy heating conductor, encased in a highly compressed magnesium oxide powder. The cable is engineered in a series-resistant configuration, which provides a constant wattage output to suit various heating projects.

These cables are sturdy, chemical-resistant, and corrosion-resistant. Designed for industrial and high-temperature maintenance applications, they are built to last and can withstand the harshest environments.

These cables are ideal for:
  • Petrochemical and refineries
  • Food processing
  • All types of factory and production environments
  • Process maintenance
  • High temperature process pipes, vessels, and tanks
  • Heat raise applications
  • Corrosive and harsh environment heat tracing
  • Trench drain de-icing

Every TRM MI heating cable is designed and manufactured by hand to suit your specific application at our CSA-approved facility in Markham, Ontario. Due to the custom nature of this product’s application, TRM Alloy 825 and Stainless Steel Mineral Insulated Heating Cables are made to order. As such, lead times are subject to product availability and production schedules. TRM MI cables are built to last, but they are easy to test, fault-locate, and repair (should the need arise) to avoid any costly downtime in the future.

Downloads

Alloy 825 & SS MI Heating Cable

Data Sheet

Pipe Tracing Accessories: Tape and Caution Labels

Data Sheet

Polymeric Residential Snow Melt Heating Cables

TRM Brand SM Polymeric Residential Snow Melt Heating Cables are engineered and manufactured to provide economical solutions for residential outdoor embedded snow melting and ice prevention applications. These include driveways, walkways, patios, landings and stairs.

TRM SM Snowmelt Heating Cables are designed to operate on 240V and will output 15 watts per linear foot when embedded beneath a concrete slab or paver installation. The heating cables are constructed using high-grade materials, emit zero electromagnetic fields (EMF), and come with a single point connection to make installation fast and easy. With 15 standard sizes in stock, we are sure to have the right kit to complete your project.

Downloads

Polymeric Residential Snow Melt Heating Cables

Data Sheet

Installation Guide

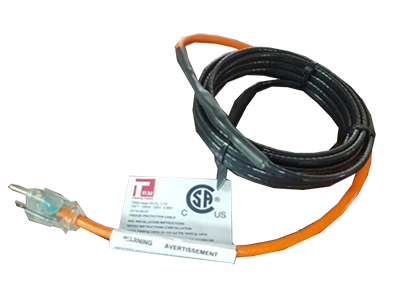

Polymeric Freeze Protection Heating Cables

TRM Polymeric Freeze Protection Heating Cables are easy to install, reliable, and low-maintenance, making them ideal for residential free air applications like pipe tracing or roof and gutter de-icing. TRM Pre-Terminated Polymeric Heating Cables come fully assembled from our factory in various heated lengths, with a 2’ cold lead and plug to transition from the heated area to your 120V receptacle.

These cables are engineered in a constant wattage/series-resistant design and include a built-in thermal disk that helps ensure the cable is on when cold and turns itself off when the pipe is warm enough not to freeze. This reduces energy costs and eliminates the need for external thermostat control. Further, the fixed wattage output means you will maintain consistent temperature across the entire pipe.

Downloads

Polymetric Freeze Protection Heating Cables

Data Sheet
